Infield Groomers, Synthetic & Natural Turf Groomers, Golf Greens Groomer, Driveway Groomer, All Manufactured Here!


HyBrid Infield & Turf Groomer HY72. High Speed Grooming of Infields + Turf Grooming.

How to Order button,25high Request Quote, 25high Factory Direct Pricing, Red 25high

See Catalog for Details about all Operator Lift Control Systems. We offer more choices of
Operator Lift Control Systems than any other manufacturer!

Parts button,25high

The World's First & Only
Convertible "HyBrid" Groomer!

HyBrid Infield & Turf Groomer HY72 Catalog

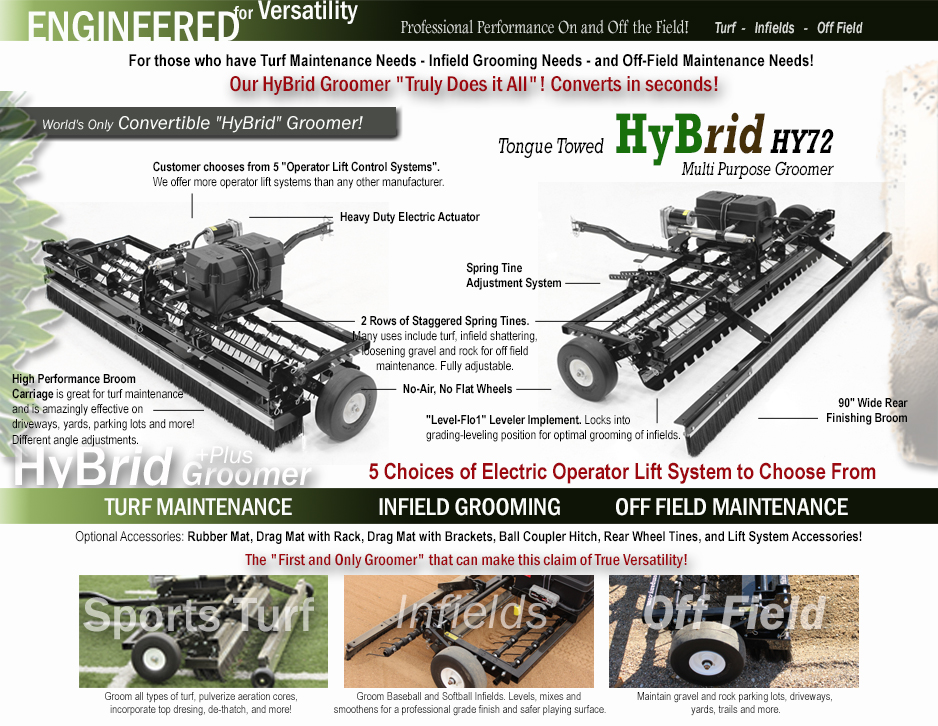

HyBrid Groomer HY72 Tongue Towed 2023

Standard equipment on the HyBrid HY72: Tongue and Hitch Combo, Two Rows of Independently Adjustable Spring Tines, Welded Frame with No-Air, No-Flat Wheels (never need air),
For Turf use (photo left above): High Performance 6-Brush Broom Carriage
For Infield Grooming (photo right above): LevelFlo1 Leveling Implement and the Rear Smoothing Broom. choose an "Operator Lift Control System" by Model Number when choosing a groomer. Each model number represents a specific lift control system and they all include
the same "standard equipment". See Catalog & "Factory Direct" pricing.

HY72 HYbrid Groomer. The Only Machine on the Market that Converts from Turf to Infield to Off Field Use !
Converts in seconds - No Tools Needed!

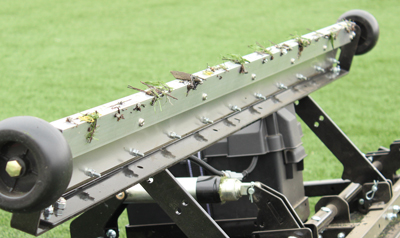

HyBrid for Sports Turf with Magnet, IMG_7556,100dpi,400w HyBrid Magnet HY72 Sports Turf,IMG_7482,crop,100dpi,400w

Do you know what's hiding in your turf? Magnet removes ferrous metal material.

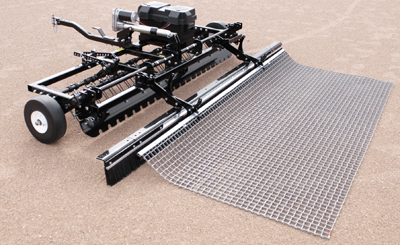

HY72 Synthetic Turf,IMG_7545,100dpi,400w HyBrid HY72 Infield with Drag Mat,IMG_187,100dpi,400w

HY72 includes implements for Sports Turf and Infield Grooming.

  Pricing Effective 1-1-2024

Direct USA

Model Numbers

Model Numbers represent the different "Operator Lift Control Systems that are available"
(WR, SG, PW, SB, HW). All have the same standard equipment/parts. See catalog (top of page) for more details.



WR = Wireless Remote Control with 12v Battery on Groomer. Wireless Control. Does not use tow machine battery.



SG = Corded Switch Box System with 12v Battery on Groomer. Does not use tow machine battery. Hand held corded switch.



PW = Portable Wireless Remote Control. Uses 12V battery of your tow machine. WR System at lower cost!



SB = Corded Switch Box System. Uses 12V battery of your tow machine. Has hand held switch control (and 2 Extension Wires).



HW = Hard Wired Control System. Wired direct into your tow machine. Dash Mounted Rocker Switch and Complete Wiring Pkg.

Direct USA


Optional Accessories / Attachments
Please refer to the catalog, link shown above, for details on all optional accessories.



Magnet 72" Wide (Complete with N52 Rare Earth Neodymium Magnets - strongest available) Optimal 3rd rear attachment for Turf



Rubber Mat 72" Wide (use instead of Drag Mat as rear attachment)



Drag Mat 84 wide x 36 deep. With Rack Mount System to carry and pull drag mat. Use behind 6 Brush Broom Carriage.



Drag Mat Rack Only (customer uses their own drag mat with our special carrier rack). For use behind 6 Brush Broom Carriage.



Drag Mat 84 x 36 with Brackets. Includes our exclusive Drag Mat Carrier Brackets. For use behind Infield Leveling Implement.



Drag Mat Brackets Only (customer uses their own drag mat with our special carrier brackets). For use behind Infield Leveling Implement.



Ball Coupler Hitch 1-7/8". Mounts to end of tongue.



Ball Coupler Hitch 2.00". Mounts to end of tongue.



Extra "WR" Wireless Transmitter.  For WR or PW Wireless Systems.



"HW" Add'l Tow Machine Wiring Package When a customer chooses the "HW" Lift System they might want to install wiring on more than
one tow machine to operate the groomer. This option is a wiring package that can be installed on a second tow machine.


3 Choices

Add a Backup Electric Control System. 3 Choices to choose from. SB, PW or SG A "backup control system" can be used to bypass the
original control system in the case of a dead battery, misplaced transmitter, broken wire, etc. If you simply have to groom, no matter what, then
onsider one of these backup systems. See catalog for more details or each system.

See our Complete Catalog link at the Top of page.
We have the most complete catalogs on the market!

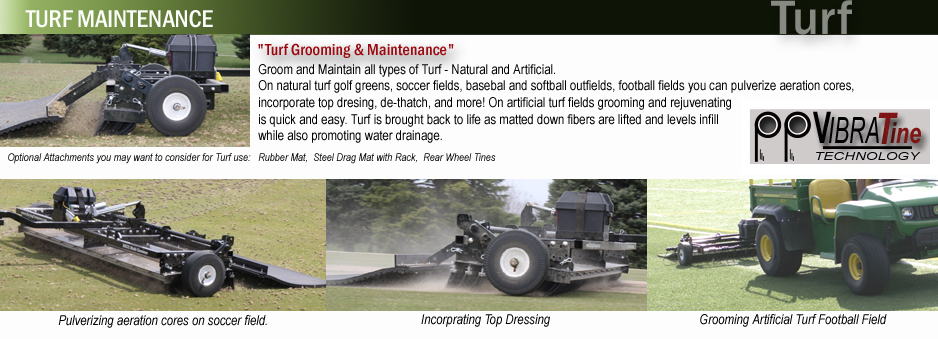

HyBrid for Turf, 938

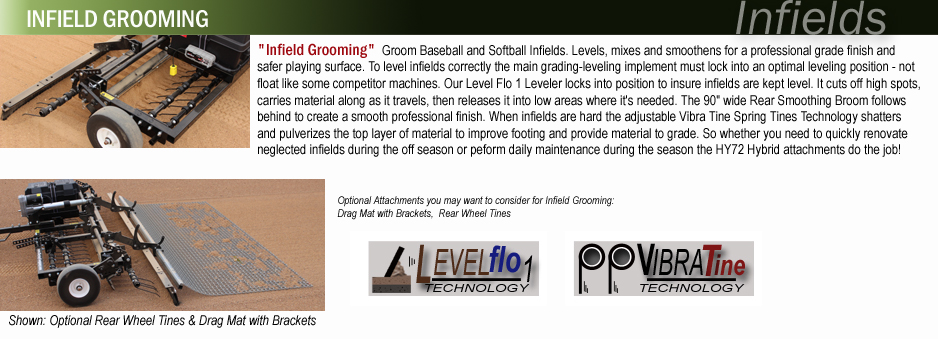

HyBrid for Infields, 938

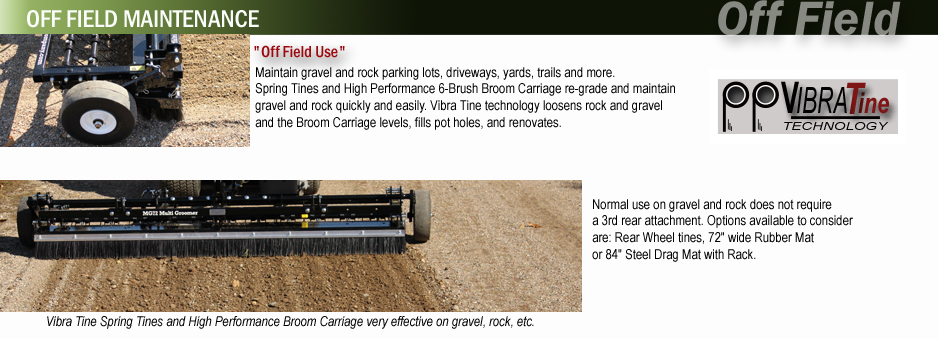

HyBrid for Off Field Use, 938

Unmatched Versatility On and Off the Field.
HyBrid HY72 is the only Groomer on the Market that can perform Turf, Infield and Off Field Maintenance even though we have competitors attempting to
mislead you by saying they have machines more versatile than our HyBrid. They don't. Our numerous attachments are effective & easy to convert.

Infield Grooming- Things to Know, 938x100

Leveling Implements Should LevelDeep Till or Sub Soil Blades  "Should I use them on my Infields?".
Have you ever played on an infield that has been deep tilled or sub soiled with a blade during the season?
They are not playable! We never suggest to customers that they do anything severe that might disturb the important
"playable footing" during the season. In fact - they don't need to with our infield groomers. Even though scarifiers
might be used to lightly shatter and pulverize the top portion of infields they should never be used deep during the
season or they could be made too soft to play on. Our Infield Groomers are engineered with Leveling implements that are very effective at grading, leveling
and preparing the top surface. The result is a firm under footing and nicely playable and safer top surface. - professional results without disturbing the
important lower layering of your infields.

Leveling  "Leveling Implements Should Lock Into Position to Level Correctly - Not Float" Leveling Implements HY Series
"It all starts with the "Leveling".
In order for baseball & softball infields to play correctly they demand a smooth - level surface with firm footing underneath and nicely playable - somewhat loose - top surface.
The hard part is the "leveling". In order for a grooming machine to actually level infields it's leveling implement
must "lock into a leveling position" - not float. So called "floating leveling devices do not level consistently" - instead
they mimic the material they float over instead of actually grading, or leveling the surface.
How can you tell if the float?
If they are connected with a chain then they float!
Our groomers all have leveling implements that lock into an optimal leveling position to cut high spots, carry material along as they travel, then
releasing material into low areas where it's needed. They level infields correctly!

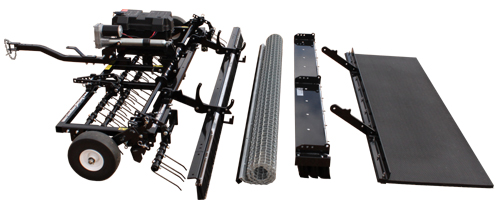

MG72-HY Hybrid HD-WR with Drag Mat, 100x500Have Turf, Infield and Off Field Maintenance Needs? Consider our HYbrid machine.
Consider the HY72 HyBrid if you have Turf and Infield Grooming needs. The HyBrid is the only machine on the market that converts
from Infield Grooming to Turf Grooming. So if you have Infields to maintain AND Sports Field Turf to care for then this is the machine
for you. Customers who buy this machine groom infields with the infield implements - then when they care for turf they convert the
machine to implements for pulverizing aeration cores, incorporating top dressing, de-thatching and grooming Artificial Turf. And, that's
not all! Have rock or gravel driveways, parking lots, yards, or trails? This groomer also works on gravel and rock 1.00" or less.
Many uses.
Options available. Price varies depending on lift system, options and attachments.      Patent Pending
